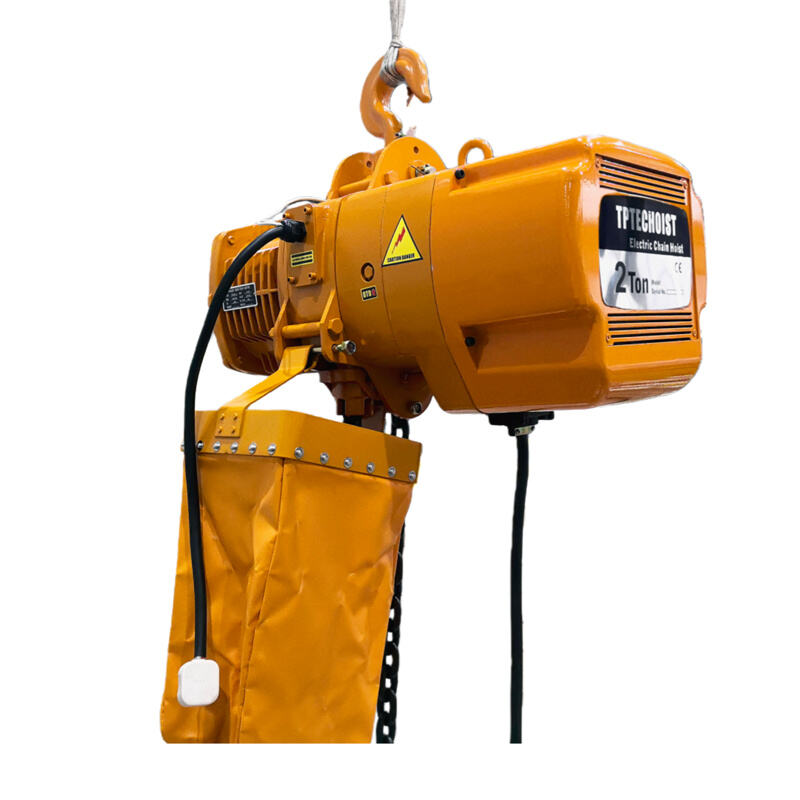

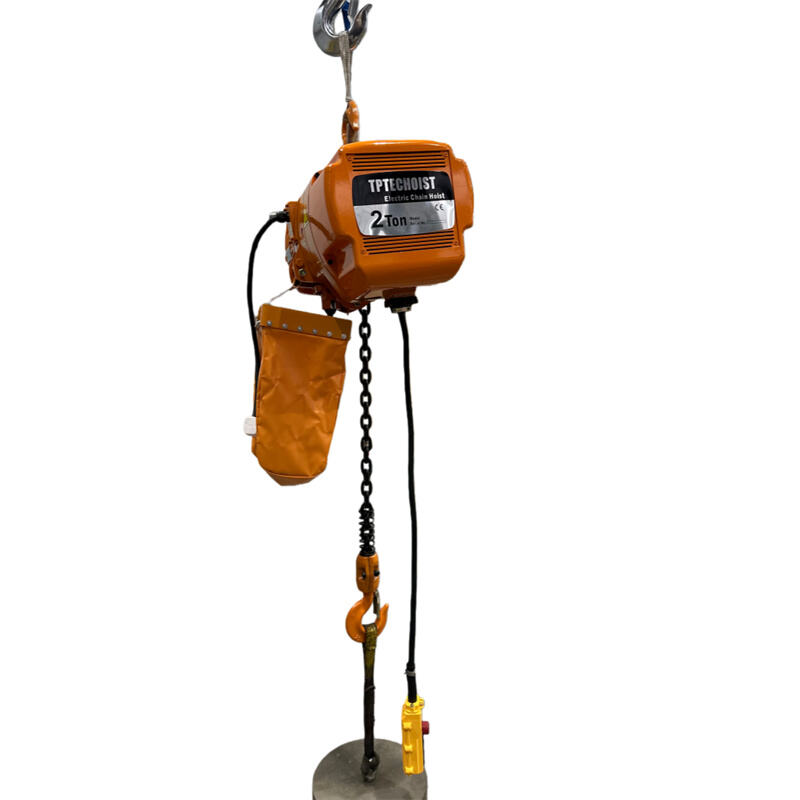

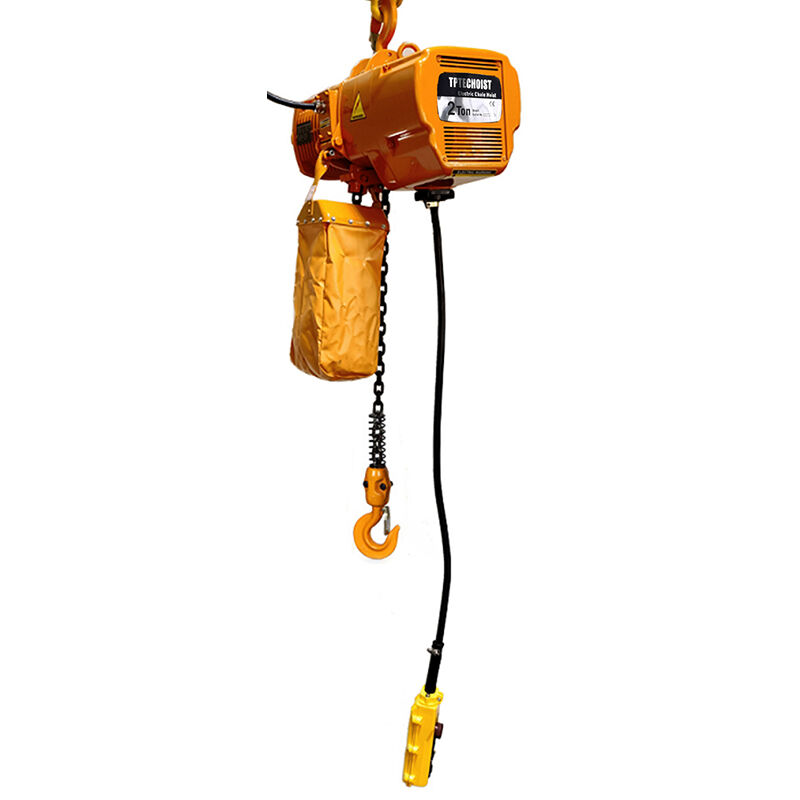

Powerful & Economical: Renowned for its robust construction, efficient operation, comprehensive safety features, and low maintenance requirements series electric chain hoist provides users with benefit:
Cost-Effective: By minimizing labor costs and maximizing operational efficiency, the electric chain hoist contributes to cost savings over time.
Enhanced Safety: The inclusion of multiple safety features helps to prevent accidents and accidents, ensuring a secure working environment for both operators and equipment.
Reliable Operation: The electric chain hoist's high reliability and low incidence of failure ensure that production processes can continue without interruption.
Easy Maintenance: The modular design and accessible components facilitate straightforward maintenance and repairs, reducing downtime and ensuring the hoist remains in optimal condition.
1.Household voltage. Industrial power.Working voltage: 220V 50/60HZ 1 PH.
2.125% SWL dynamic load test
3.Automatic motor brake system features simultaneous braking upon power failure or switching off. Limit switches hold load chain from running out.
4.Multiple Safety Features: Equipped with phase protection, limit switches, and an emergency stop function, the hoist is designed to prevent accidents and safeguard operator safety. Optional overload limiters can be added for further safety enhancement.
|
Capacity (kg) |
Model |
Motor Power (kw) |
Lifting Speed (m/min) |
Chain Size (mm) |
Chain Drop |

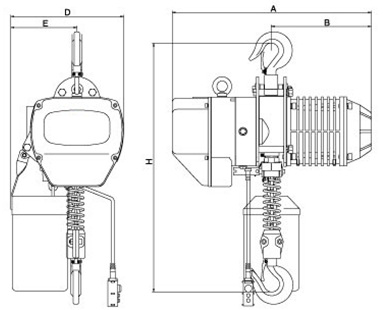

H mm |
A mm |
B mm |
D mm |
E mm |
| 500 | SP-PE005S | 0.8 | 7.2 | 6.3x19 | 1 | 530 | 460 | 230 (260) | 288 | 178 |
| 1000 | SP-PE010S | 1.5 | 6.9 | 7.1x21 | 1 | 650 | 520 | 260 (280) | 300 | 178 |
| 2000 | SP-PE020S | 3 | 6.9 | 10x30 | 1 | 800 | 615 | 295 (313) | 430 | 265 |
| SP-PE020L | 1.5 | 3.3 | 7.1x21 | 2 | 835 | 520 | 260 (280) | 300 | 236 | |
| 3000 | SP-PE030S | 3 | 5.4 | 11.2x34 | 1 | 845 | 615 | 295 (313) | 430 | 265 |
| SP-PE030L | 3 | 4.4 | 10x30 | 2 | 960 | 615 | 295 (313) | 430 | 320 | |
| 5000 | SP-PE050S | 3 | 2.7 | 11.2x34 | 2 | 1030 | 615 | 295 (313) | 430 | 325 |

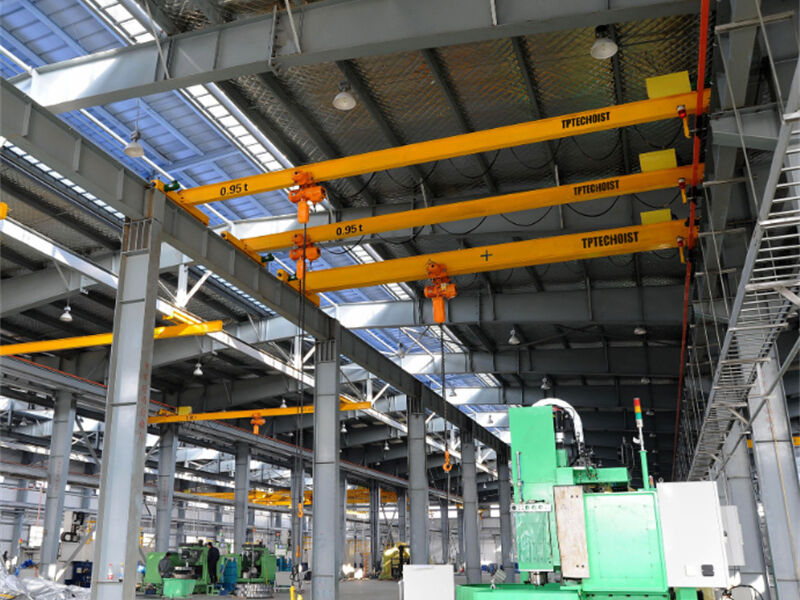

Bridge Crane project

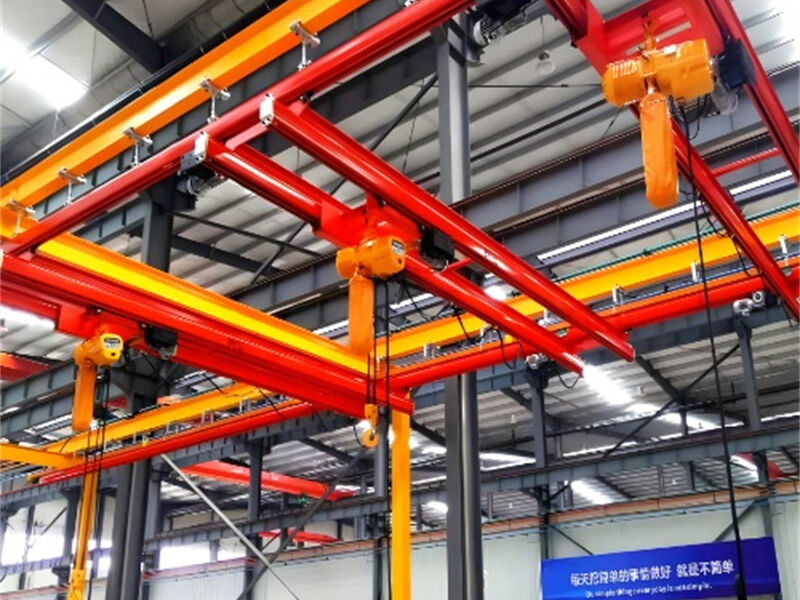

KBK Light weight crane
KBK Light weight crane
A: An electric chain hoist operates by using an electric motor to drive a gear system, which in turn drives a chain. The chain wraps around two sprockets, and through this mechanical transmission, it achieves the vertical lifting or lowering of loads.
A: Choosing the appropriate model involves considering several key factors, including the required maximum lifting capacity, lifting height, working environment conditions (such as temperature, humidity, chemical gases, etc.), and whether any special features are needed, like variable speed control or remote operation.
A: Yes, regular maintenance is necessary to ensure the performance and safety of the equipment. This includes cleaning, inspecting for wear and tear, lubricating moving parts, and checking the electrical system for proper functioning.
A: Overloading can lead to chain breakage, motor damage, or other serious equipment failures. Some electric chain hoists are equipped with overload protection features that automatically cut off the power supply in case of overload, preventing accidents.
A: The lifespan depends on various factors, including usage frequency, working environment, and maintenance. A high-quality electric chain hoist can last for many years with normal use and proper maintenance.
A: Yes, for safety reasons, the electric chain hoist should be disconnected from the power source when not in use. This prevents accidental activation and conserves energy.
A: To ensure safe use, the following measures should be taken: inspect the equipment for any defects before use, train operators properly, follow the manufacturer's guidelines, avoid using the equipment beyond its rated capacity, and conduct regular maintenance checks.
